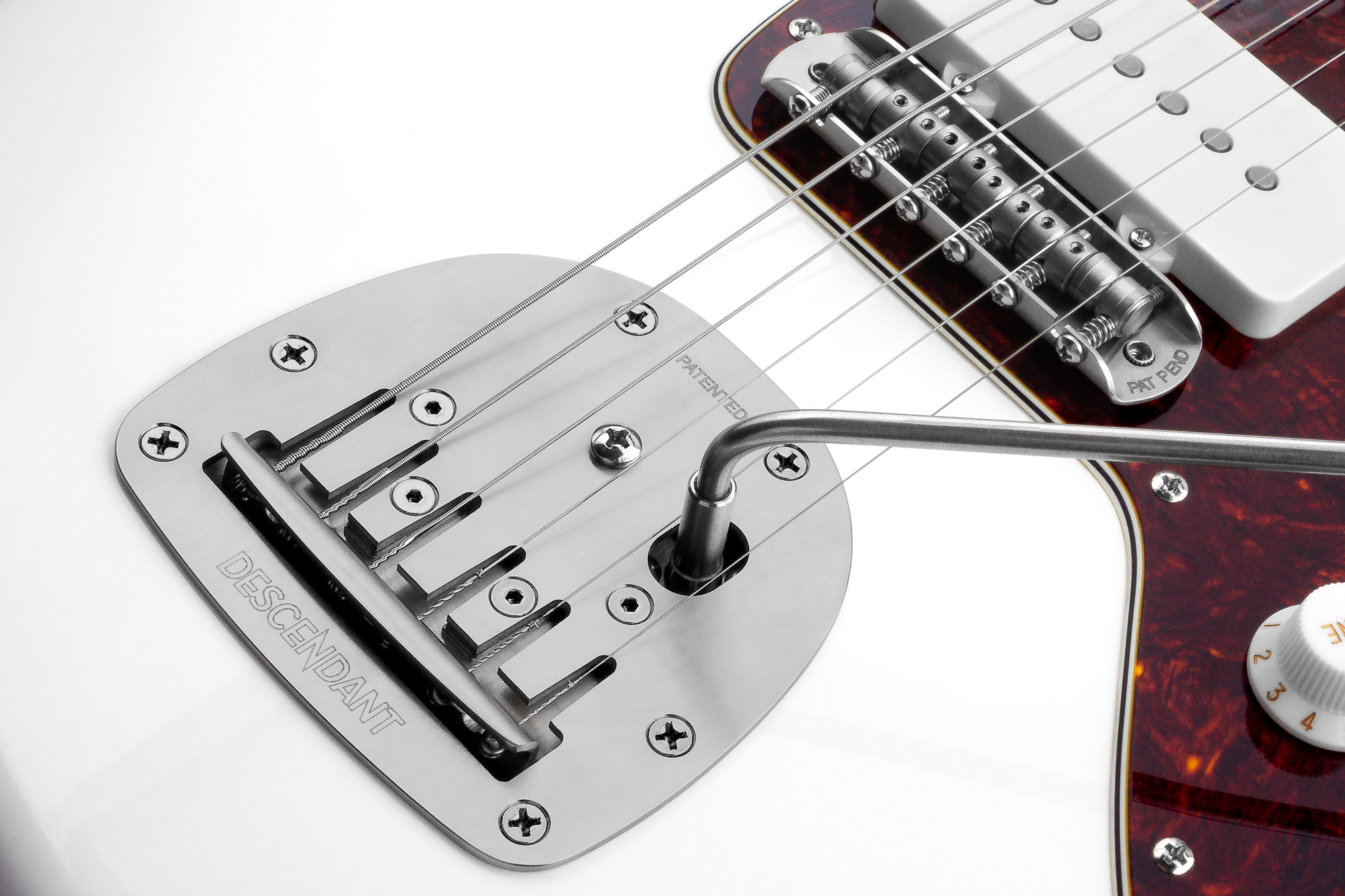

Patented design allows the strings to be set below the plane of the vibrato’s plate.
Adjusts to 2 depth settings depending on your individual guitar’s needs.
Greater downward pressure of the strings on the bridge saddles results in increased resonance and keeps strings from popping out of the saddles with aggressive playing.
Novel arm housing lets the player adjust the arm tension for individual preference. Adjustment is via a hex screw accessible from the top of the unit.
Unique removable arm design keeps your tension set. Simply rotate the arm to release the position and lift it out.
Front-loaded string keyhole design for ease of string installation and removal. Added benefit for those who like to customize, allows for reuse of strings if removed to swap pickups, experiment with different wirings, change pickguard, etc.
Universal Companion Bridge
Patented, rotating, off-center post collars facilitate shifting of bridge to correct for poor string alignment of instrument and/or extend range of intonation. Can be removed those who prefer old-school pivot style.
Adjustable to any radius. Set height of the outside strings via the traditional bridge post adjustments. The 4 middle saddles have individual height adjustment screws to set string height.
Novel saddle design allows for ultralow-profile baseplate. Additional slots in plate for outside strings, (lowest points in fingerboard radius), insure unimpeded path to tailpiece.
Saddles sets incorporate radiused string slots, from high to low, to guarantee solid seating of strings in saddles. Prevents string binding and conversely, side to side travel that can happen with “one size fits all” string grooves.
Locking hollow hex screws lock bridge posts so they don’t sink over time.
Optional use coupling discs, mount in bridge post screw channels after bridge has been set up to lock saddles together.
